Specification
Assay: Viscosity‑based (mechanical) clotting assay, Chromogenic assay, Immunoassay.
Structure꞉ 2 probes on two separate arms.
Test Channel: 8
Incubation Channel: 20
Reagent Position: 42, with 16 ℃ cooling, tilt and stir function.
Sample Position: 6*10 position, drawer‑type design, expandable.
Cuvette: 1000 cuvettes loading continuously.
Interface: RJ45, USB.
Transmission: HIS / LIS supported.
Computer: Windows operating system, support external printer.
Data Output: Test status, and real‑time display, query, and printing of results.
Instrument Dimension: 890*630*750 (L*W* H, mm).
Instrument Weight: 110 kg
1 Three Assays, Excellent Anti-interference Performance
1）Viscosity‑based (mechanical) detection principle, insensitive from HIL(haemolysis, icteric and lipemic) samples.
2）LED on chromogenic and immunoassays, eliminate the interference of stray light to ensure accuracy.
3）700nm immunoassay, avoid interference from absorption peak.
4）Multi‑wavelength detection and unique filtering technology ensure measurement on different channels, different methods at the same time.
5）8 test channels, chromogenic and immunoassays can be switched automatically.
2 Easy Operation

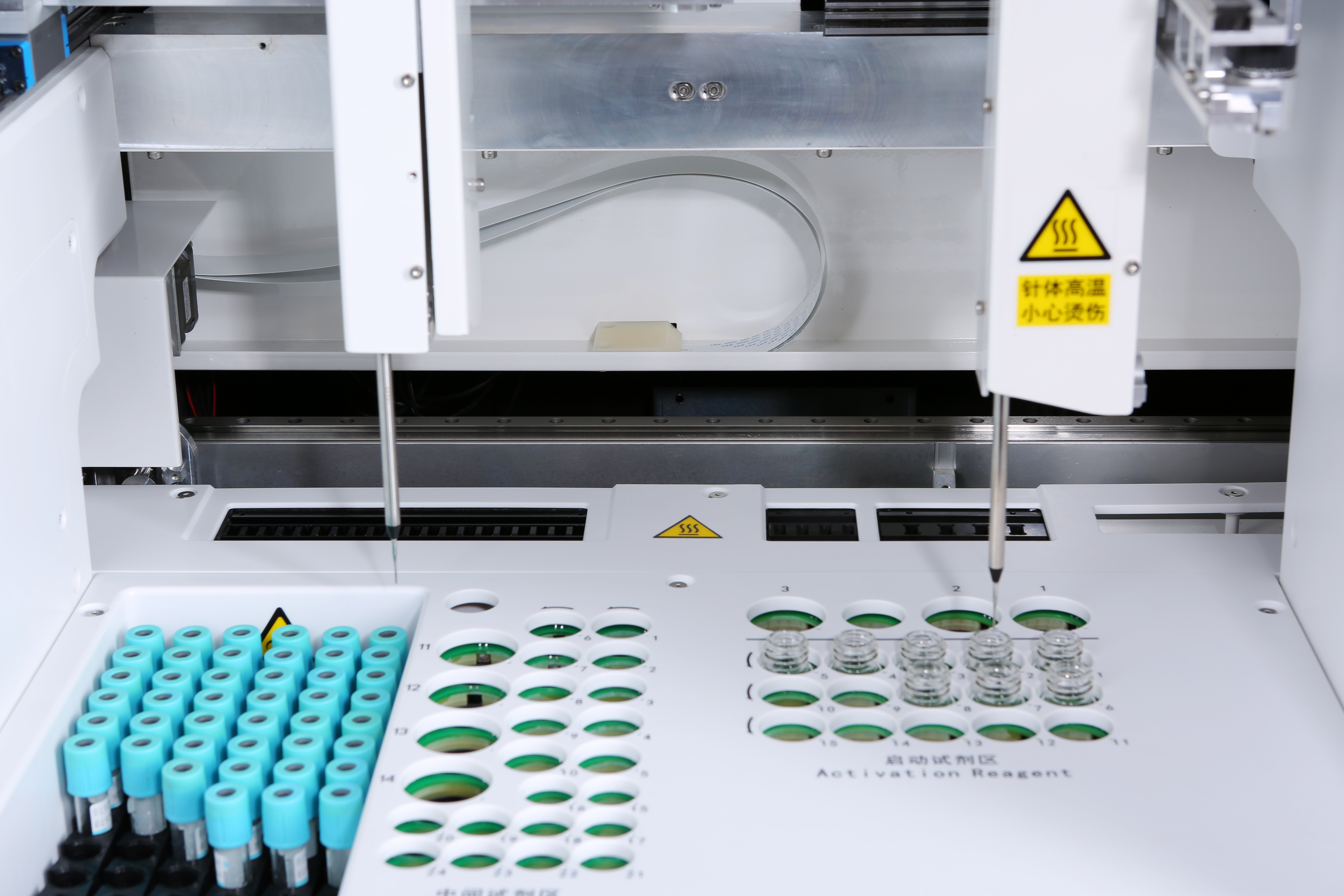

1）Sample probe and reagent probe move independently, with anti‑collision function, ensure higher throughput.
2）1000 cuvettes loading and can realize non‑stop replacement.
3）Auto backup‑vial switching for both reagent and cleaning liquid.
4）Auto re‑dilute and retest for abnormal sample.
5）Cuvette hook and sampling system work in parallel for fast operation.
6）Modular liquid system to make maintenance easier.
7）Reagent and consumables residual monitoring and early warning.
3 Complete Management of Reagents and Consumables
1）Auto internal barcode reading to identify reagent type and position.
2）Tilt reagent position to avoid from reagent waste.
3）Reagent position with cooling and stir function.
4）Auto input of reagent lot, expire date, calibration data and else by RFID card.
5）Automatic multi‑point calibration.
4 Intelligent Sample Management
1）Sample racks with position detection, auto lock, and indicator light.
2）Any sample position supports emergency STAT sample as priority.
3）Internal sample barcode reading supports bidirectional LIS.
5 Testing Item
1）PT, APTT, TT, APC‑R, FIB, PC, PS, PLG
2）PAL, D‑Dimer, FDP, FM, vWF, TAFl, Free‑Ps
3）AP, HNF/UFH, LMWH, AT‑III
4）Extrinsic coagulation factors: II, V, VII, X
5）Intrinsic coagulation factors: VIII, IX, XI, XII
Beijing SUCCEEDER as one of the leading brands in China Diagnostic market of Thrombosis and Hemostasis, SUCCEEDER has experienced teams of R&D,Production, Marketing Sales and Service Supplying coagulation analyzers and reagents, blood rheology analyzers, ESR and HCT analyzers, platelet aggregation analyzers with ISO13485, CE Certification and FDA listed.
